Heim Light Show Drones

LS-2 Light show drones used in celebrations

LS-2 Light show drones used in celebrations

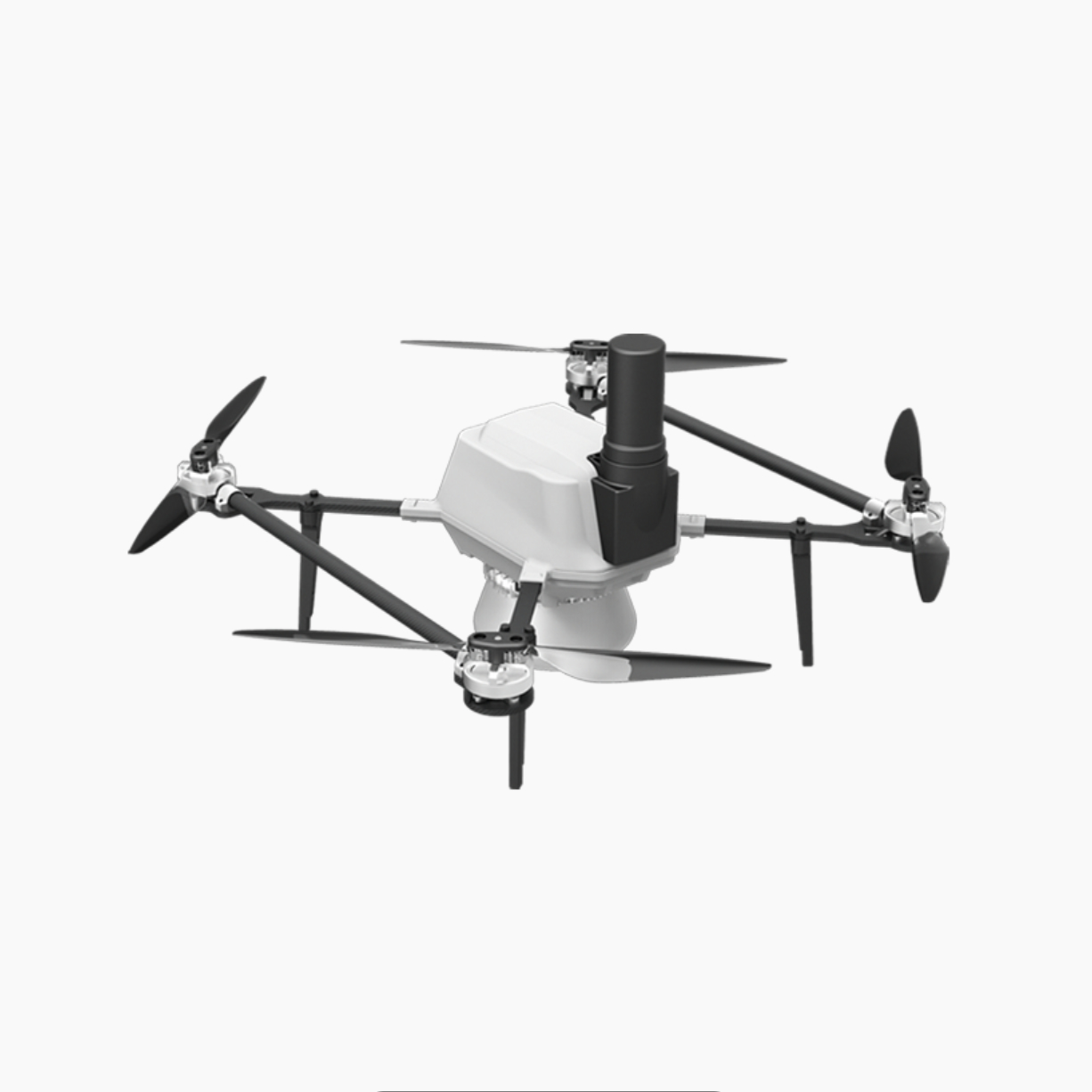

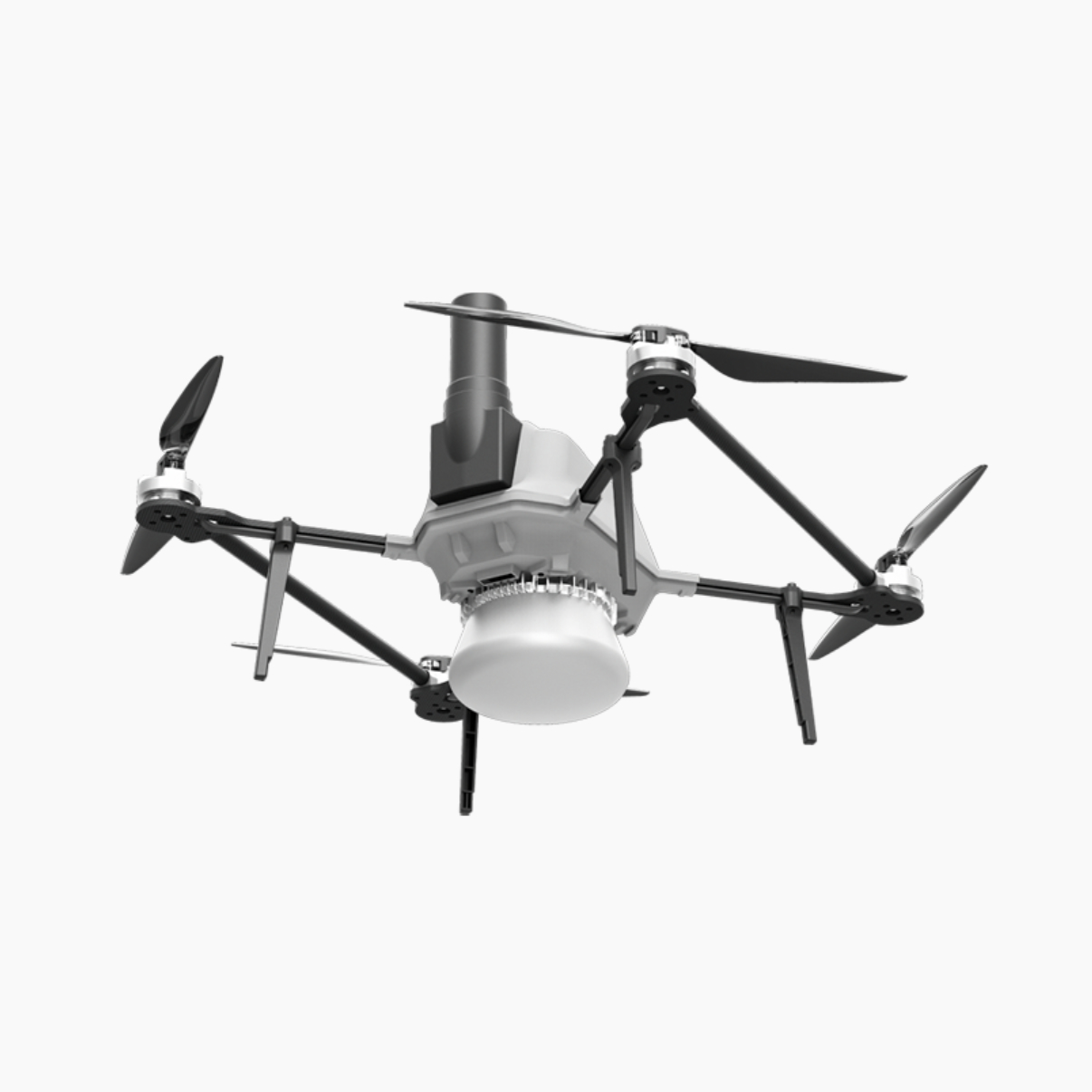

The LS-2 light show drone features a carbon fiber and aluminum alloy composite structure, integrating the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.

  • Artikel-Nr :

    LS-2
  • Bestellung (MOQ) :

    200
  • Zahlung :

    T/T
  • Produktherkunft :

    CHINA
  • Farbe :

    WIHTE
  • Verschiffungshafen :

    SHANGHAI/SHENZHEN
  • Vorlaufzeit :

    30DAYS

The LS-2 light show drone features a carbon fiber and aluminum alloy composite structure, integrating the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.

Key Features

  • Easy to use, compact size, easy to transport, and quick to deploy;
  • Highly expandable, allowing for a variety of accessories such as smoke sticks and fireworks;
  • High reliability, integrated with the FC-2M dual-redundant high-reliability flight control system, with two redundant gyroscopes, accelerometers, and magnetic compasses;
  • High positioning accuracy, integrated with a multi-frequency high-precision RTK module, achieving real-time positioning accuracy of up to 1cm + 1 ppm CEP;
  • High performance flight speed, reaching a maximum of 10m/s;
  • High environmental adaptability, capable of flying in winds up to 14m/s and operating in ambient temperatures ranging from -20°C to 60°C;
  • Long performance flight time, with a maximum performance flight time of 21 minutes;
  • Strong anti-interference capabilities, dual redundant data transmission links, and dual-band operation. If one data transmission link is interfered with, the other remains operational, with a communication range of up to 3km.
  • Highly automated, it supports fully automatic status checks and uses lights to indicate drone status. It also supports remotely waking and sleeping all drones via ground station software.
  • Highly effective lighting, featuring a 24W high-power, full-color LED module capable of millions of color combinations.

Technical specification

DRONE Unfolded dimensions 451x451x180mm
Folded dimensions  268x268x180mm
Wheelbase 339.5mm
Standard flight weight 640g
GNSS 184-channel,
GPS L1C/A L2C,
GLO L1OF L2OF,
GAL E1B/C E5b,
BDS B1I B2I,
QZSS L1C/A L1S L2C,
SBAS L1C/A
Positioning accuracy 11 cm + 1 ppm CEP
Maximum ascent speed 6m/s
Maximum descent speed 6m/s
Maximum horizontal flight speed 10m/s
Maximum takeoff altitude 5000m
Maximum wind speed 14m/s
Maximum flight time 30 ± 1 minute
Maximum flight time 21 minutes
Maximum lighting module power 24W
Operating temperature  -20°C to 60°C
Operating humidity ≤85% RH (non-condensing)
Storage temperature 0°C to 40°C
Storage humidity 65 ± 20% RH
Communication method Dual redundant data transmission + WiFi
Maximum communication distance  2-3 km
BATTERY Battery type LiPo 4S1P
Nominal capacity 2250 mAh
Nominal voltage 15.4 V
Nominal energy 34.65 Wh
Weight 188 g
Charging time 1-1.5 hours
Charging temperature 0°C to 45°C
Storage temperature Storage time less than 3 months: -10°C to 45°C
Storage time greater than 3 months: 23 ± 5°C
Storage humidity 65 ± 20% RH



FAQs

1. What is the approximate service life of a drone?

5-10 years, mainly depends on the user's maintenance of the drone.

2. How many flight hours?

Mainly, the battery needs to be replaced with a new one after 400-500 cycles of charging.

3. Which parts need to be replaced regularly?

Propellers, landing gear, water pumps, centrifugal nozzles, we recommend equipping each drone with 2 pairs.

4. What services does the drone need?

Clean the drone frequently and pay attention to whether the screws are loose and need to be replaced.

5. How long is the interval?

Mainly depends on the user's use. You should observe the condition of the drone frequently.



Why choose BEONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
